Gasket profiles

Gasket styles

These are the most common gasket profiles used today. We manufacture most of them in Louisville, KY using the original OEM material and specifications. The profiles we do not make, we can order for you.

How to order

Find your profile, then measure

Compare your gasket to the profiles below and find the matching one. Check that the height and width of the gasket are correct.
Measure your gasket from outside corner to outside corner.
Send us the profile and size with our Request a Gasket form, or call (502) 592-8545.

The most common uses for each profile are listed, but all profiles have been and can be used on other manufacturers' products too. Do not assume a particular manufacturer's refrigerator uses the profile listed. It could be different.

30 common profiles

Profile chart

Click a picture to see it larger.

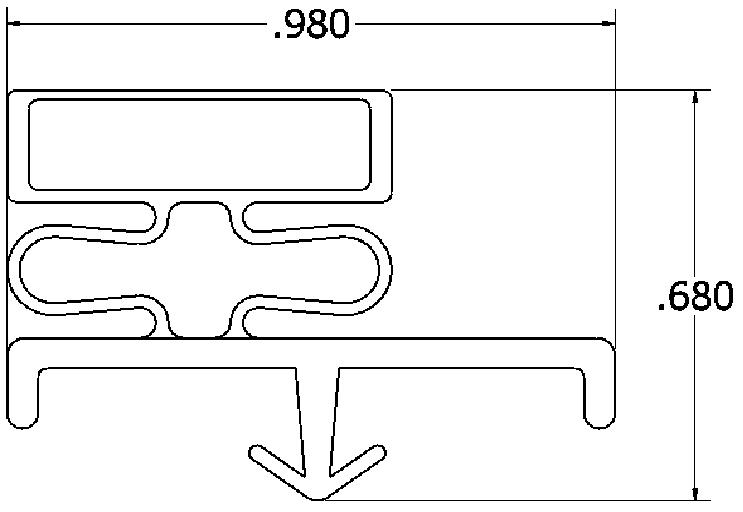

516Universal snap-in, used on many different manufacturers' unitsRequest this gasket

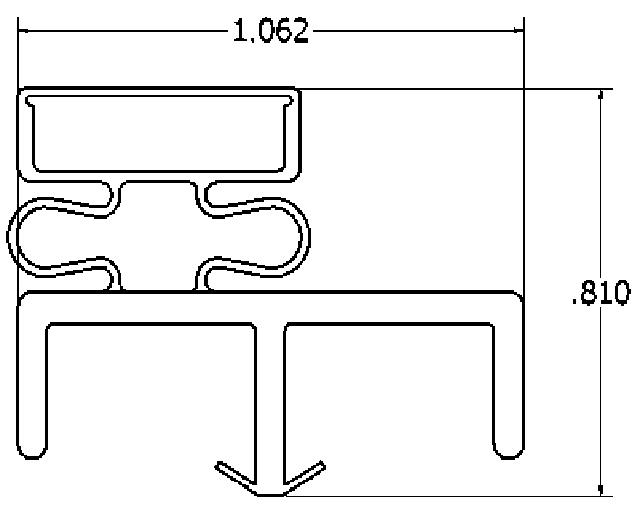

012Used on Victory unitsRequest this gasket

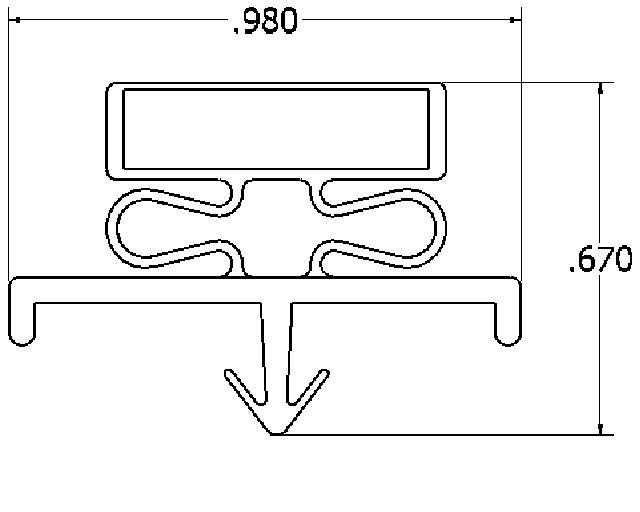

436Used on Traulsen unitsRequest this gasket

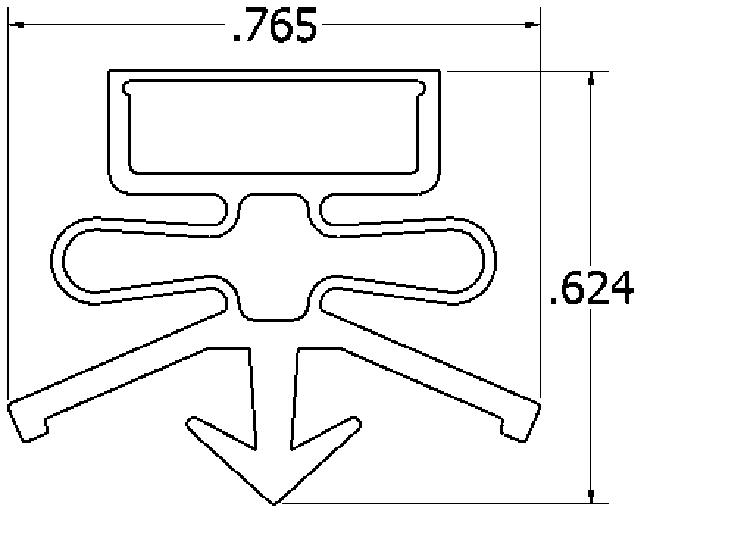

601Used on True & Perlick refrigeratorsRequest this gasket

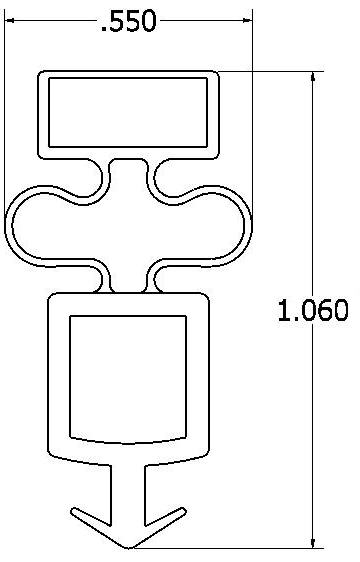

034Used on True refrigeratorsRequest this gasket

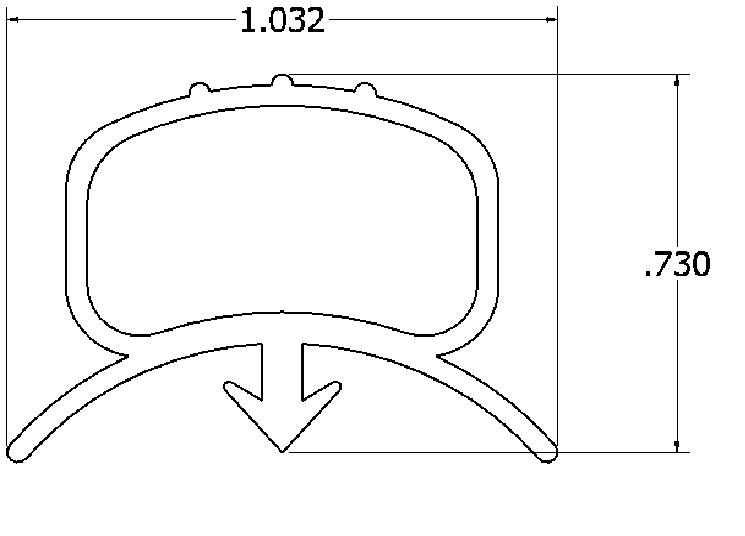

672Used on Silver King, salad shooters, milk dispensers, etc.Request this gasket

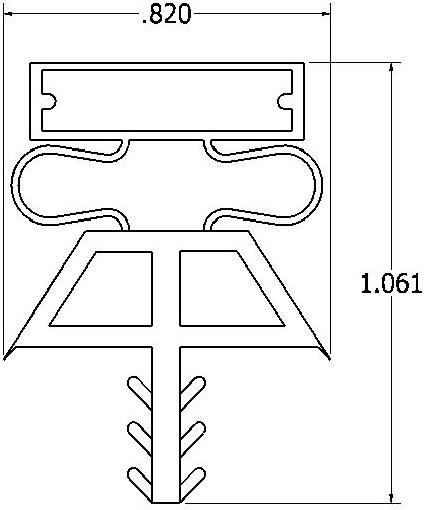

018Used on Kolpak / Vulcan walk-insRequest this gasket

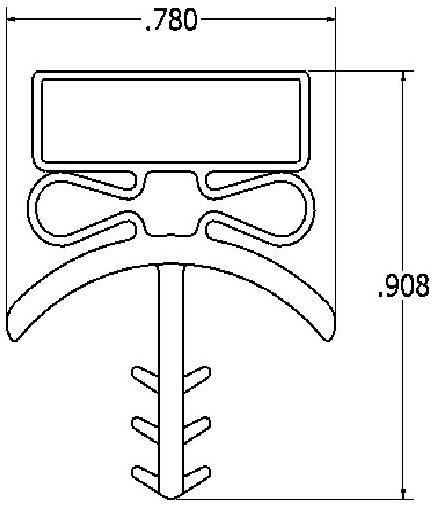

130Used on Bally, Brown, Louisville Cooler and other walk-in coolersRequest this gasket

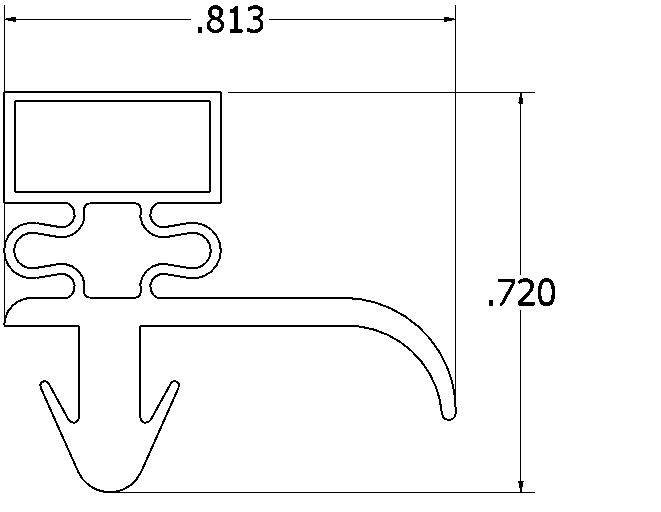

1230Used on Silver King unitsRequest this gasket

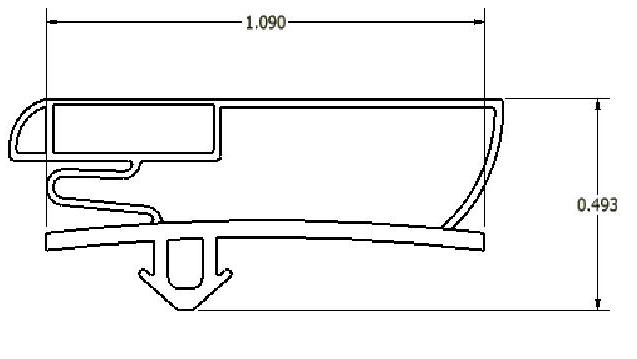

057Used on newer Anthony / Ardco unitsRequest this gasket

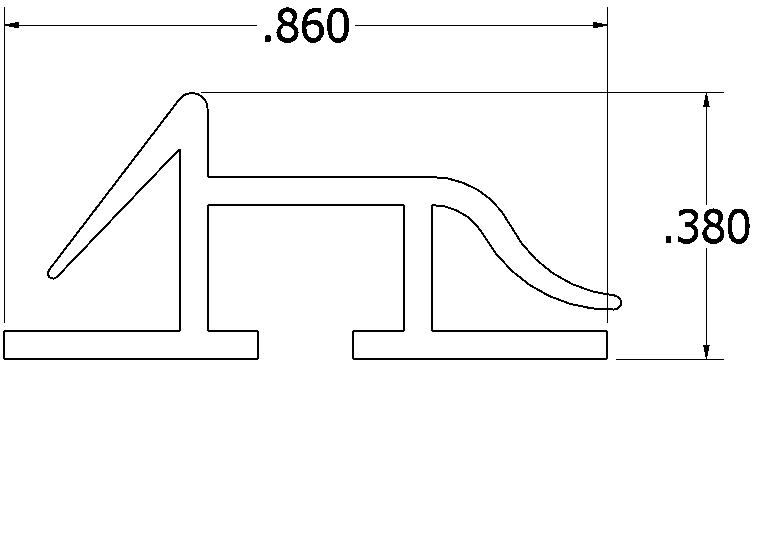

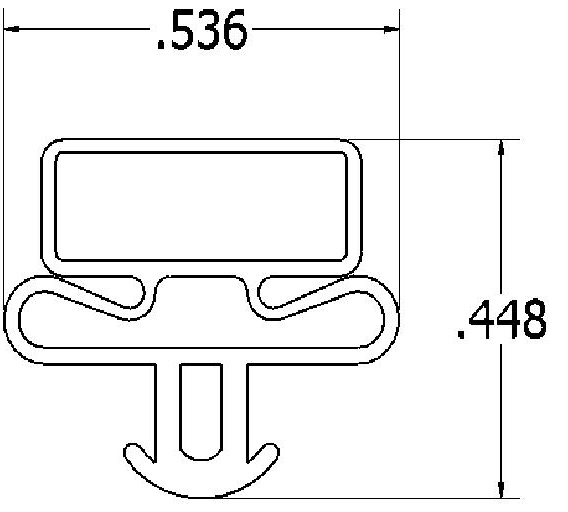

001Used on Anthony / Ardco unitsRequest this gasket

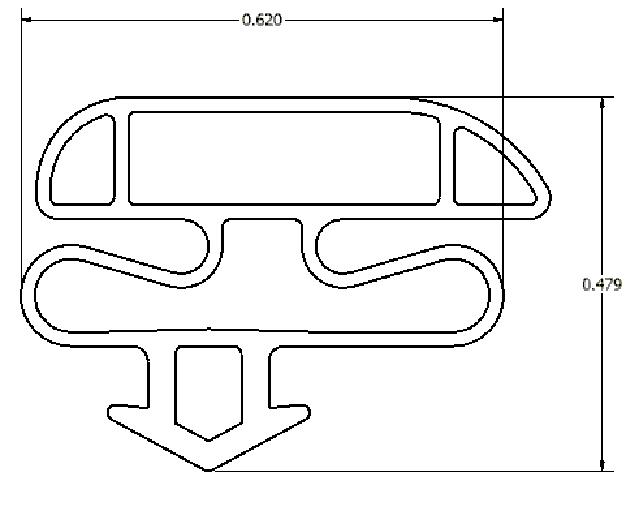

1536Used on Anthony / Ardco unitsRequest this gasket

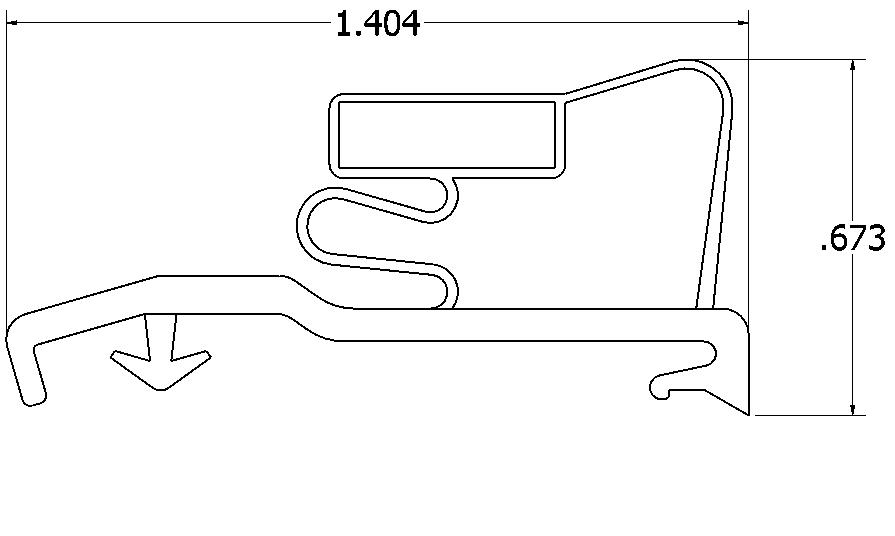

558Used on Ardco unitsRequest this gasket

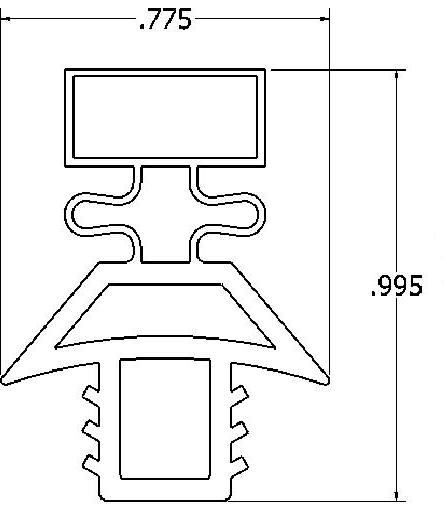

169Used on Traulsen unitsRequest this gasket

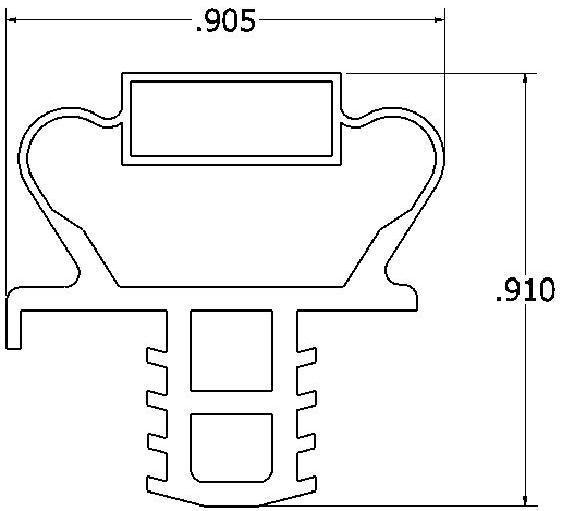

357Used on Delfield unitsRequest this gasket

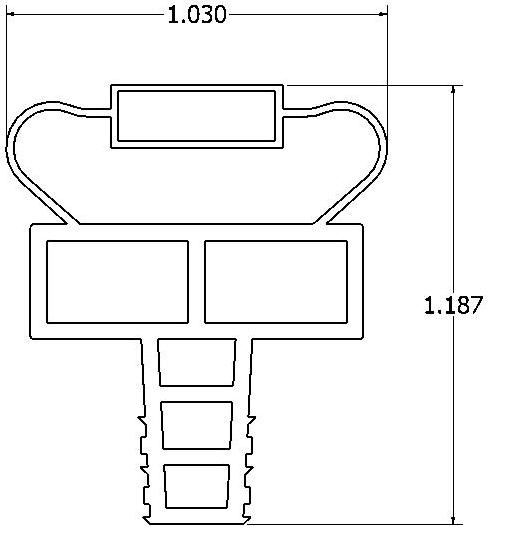

471Used on Randell unitsRequest this gasket

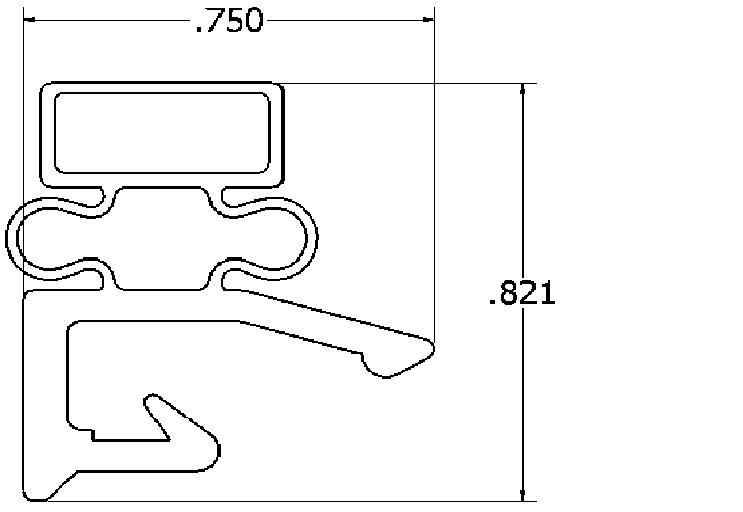

059Used on Hobart unitsRequest this gasket

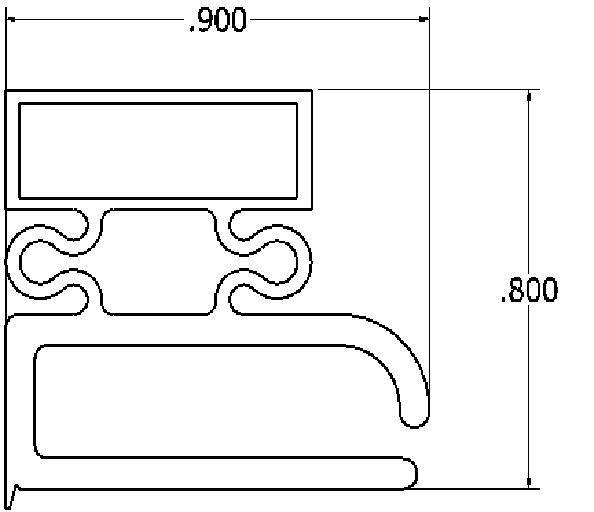

002Used on units where the 449 is too shortRequest this gasket

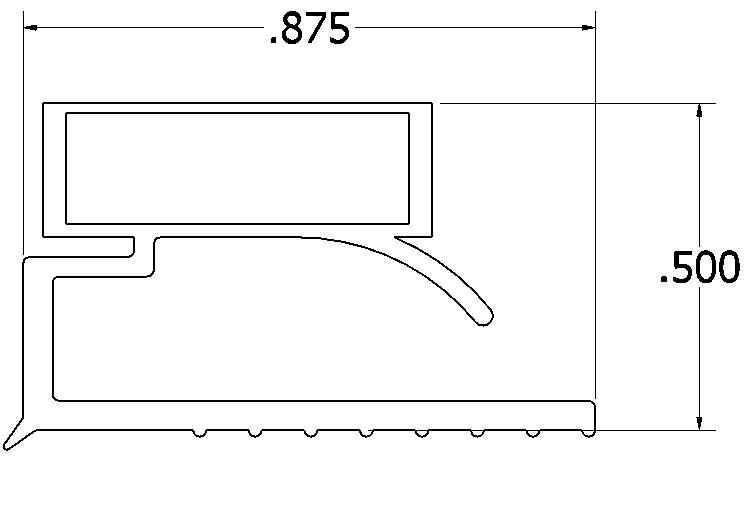

1094Used anyplace that requires a short profileRequest this gasket

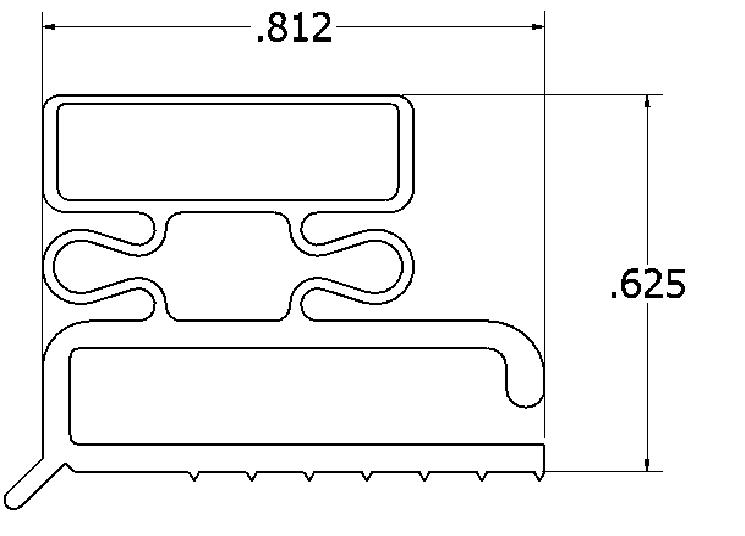

449Universal screw-down gasketRequest this gasket

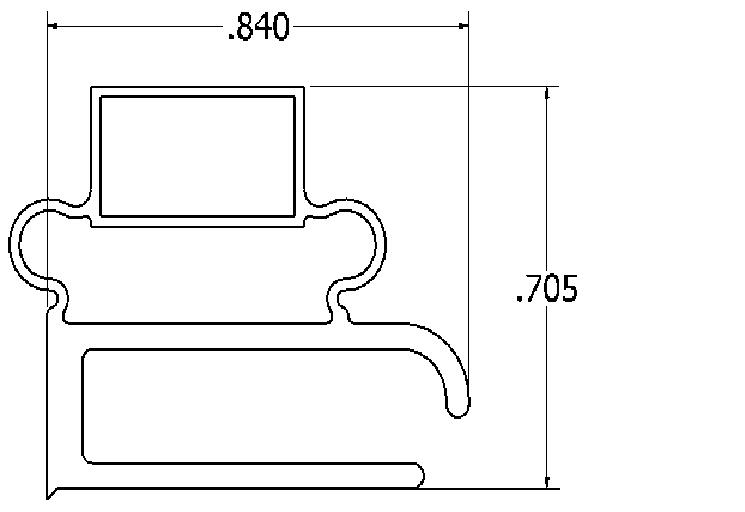

1206Used on Delfield unitsRequest this gasket

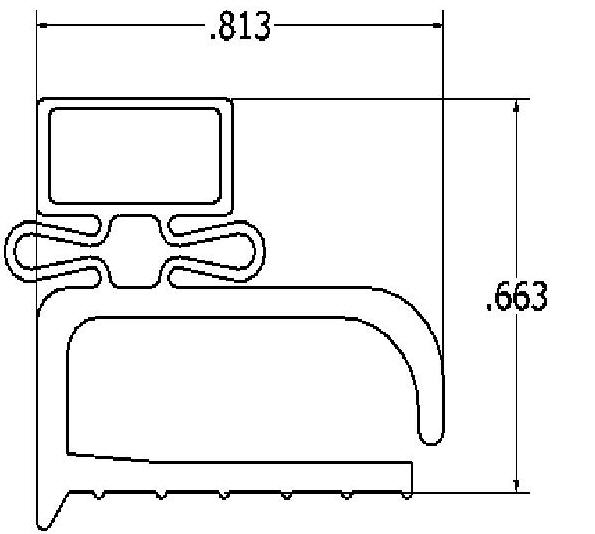

270Used on Randell unitsRequest this gasket

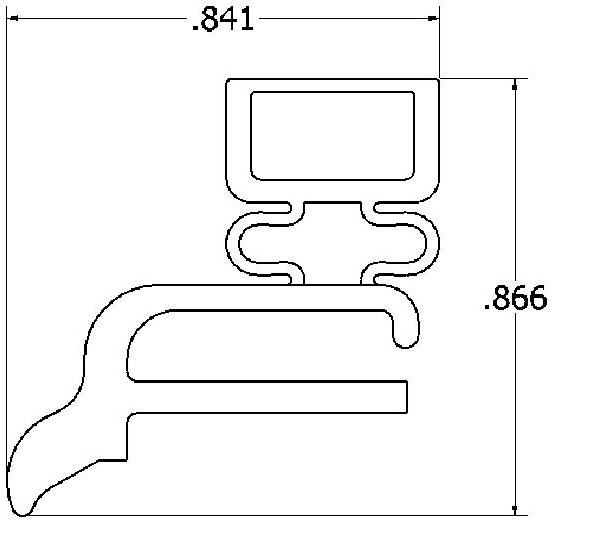

379Match to existing unitRequest this gasket

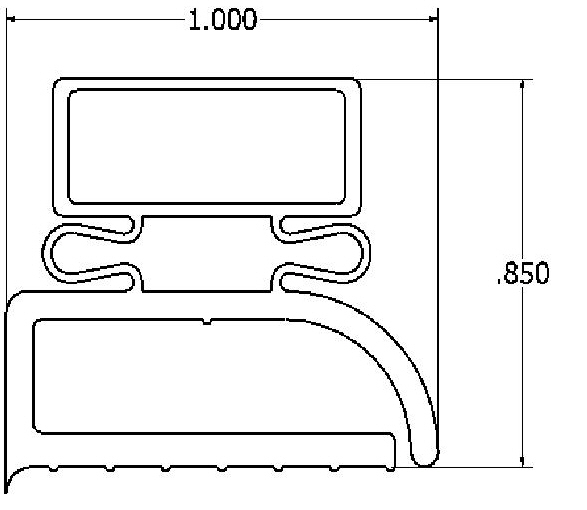

6174Match to existing unitRequest this gasket

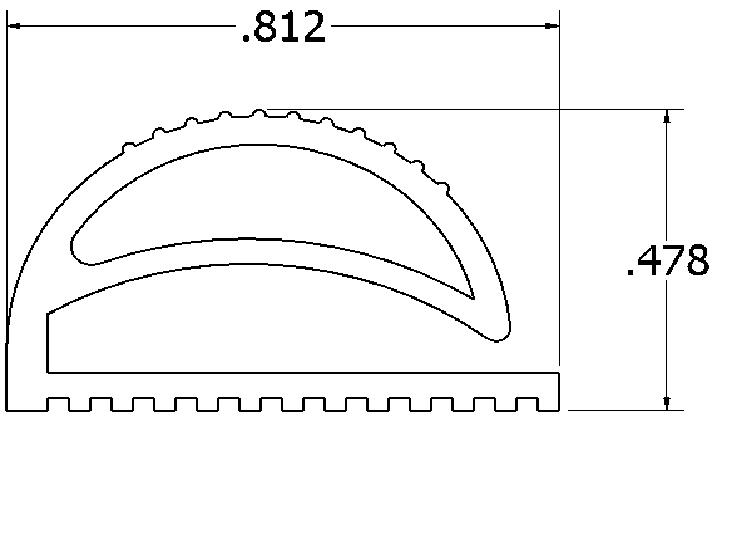

804Compression gasket used on all types of older unitsRequest this gasket

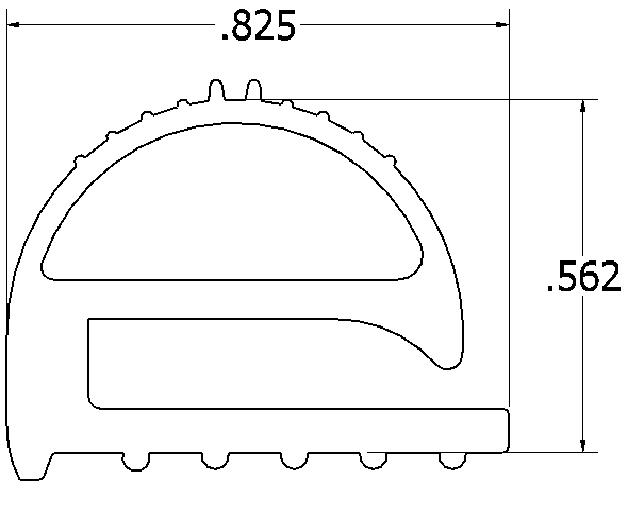

848Used where the 804 is not tall enoughRequest this gasket

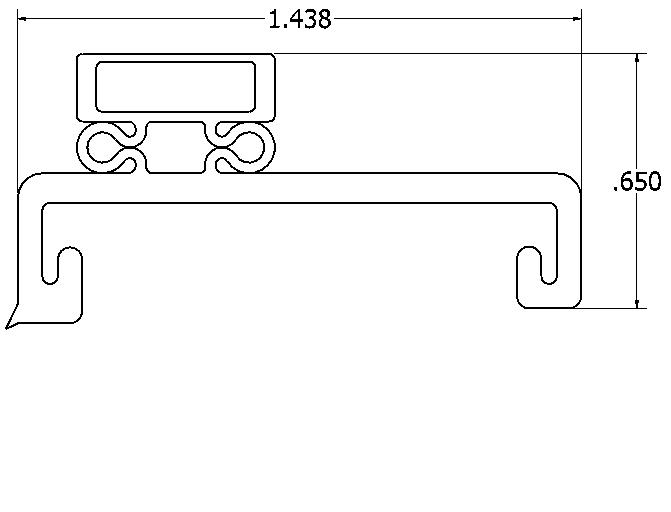

6606Used on Anthony / Ardco unitsRequest this gasket

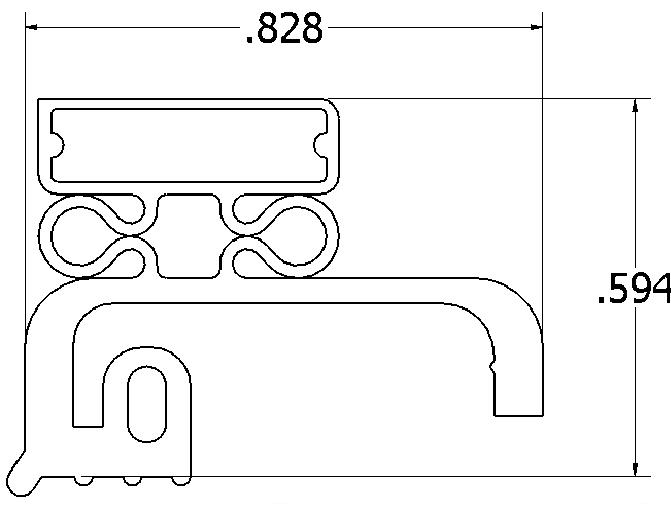

3683Used on Anthony / Ardco unitsRequest this gasket

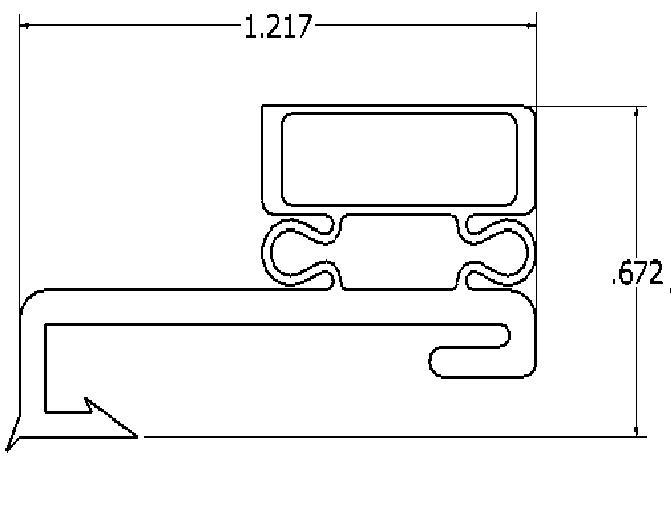

5189Used on Anthony / Ardco unitsRequest this gasket
TrackGasket trackRequest this gasket
